SPECIFICATIONS

Brand Name: M-VAVE

Choice: yes

High-concerned chemical: none

Is Batteries Included: Yes

Origin: Mainland China

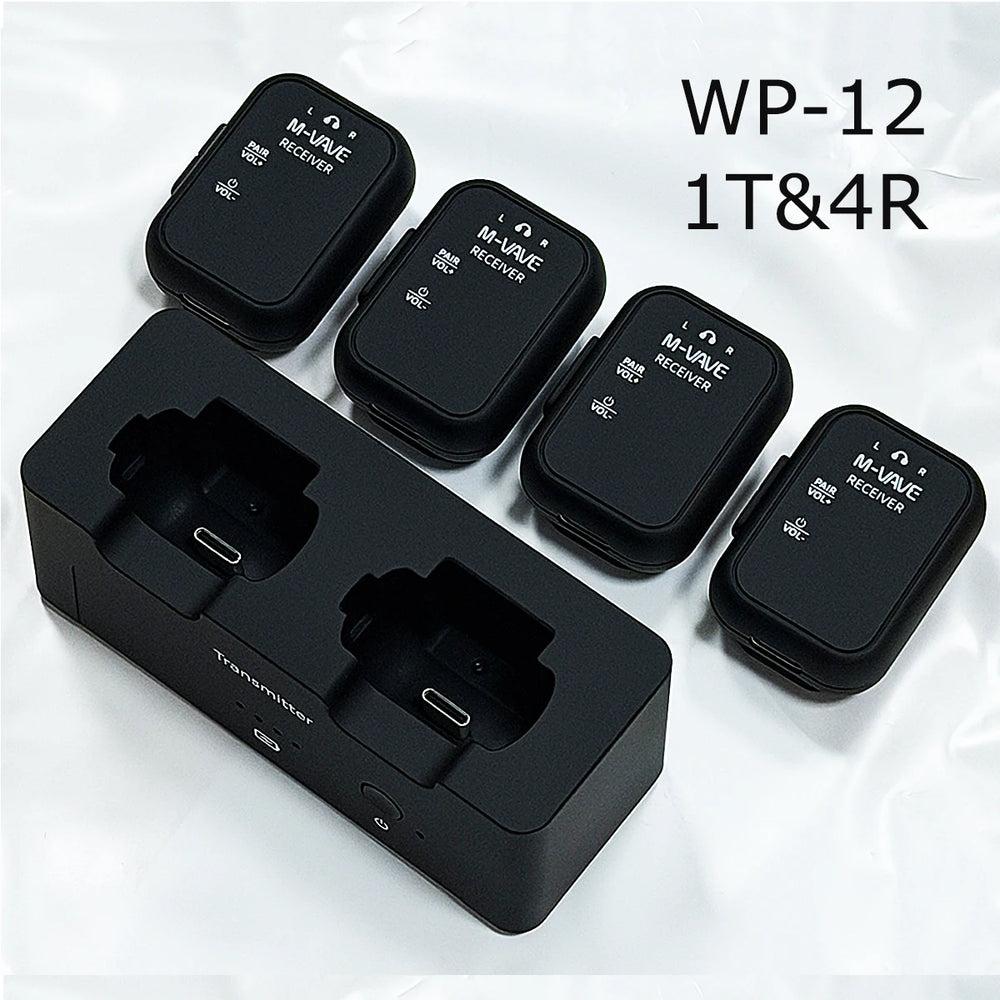

🎧 M-VAVE WP-12 Wireless In-Ear Monitor System – 1 Transmitter + 4 Receivers, 2.4GHz Digital Transmission, Low Latency, 30m Range

The M-VAVE WP-12 is a professional wireless in-ear monitoring system designed for stage performers, musicians, and speakers. This 1T4R version includes one transmitter and four receivers, allowing up to four users to monitor simultaneously. Operating on the 2.4GHz frequency band, it delivers 24bit/48kHz lossless digital audio with an ultra-low latency of just 3ms – ensuring real‑time, clear sound even in noisy environments. The transmitter features a built‑in 1800mAh lithium battery for up to 24 hours of use, while each receiver has a 200mAh battery providing approximately 6 hours of operation. The system supports four operating modes: Left channel only, Right channel only, Stereo, and Mute. Effective transmission distance reaches up to 30 meters (outdoor, line‑of‑sight). Perfect for live performances, band rehearsals, recording studios, conferences, and teaching.

✨ Product Features

🎛️ 1 Transmitter + 4 Receivers – One transmitter can send audio to four independent receivers simultaneously.

📡 2.4GHz Digital Transmission – Stable, interference‑resistant wireless connection.

🎵 High‑Fidelity Audio – 24bit/48kHz lossless digital sound quality, 20Hz–20kHz frequency response.

⚡ Ultra‑Low Latency – Only 3ms delay, ideal for real‑time stage monitoring.

🔋 Long Battery Life – TX: 1800mAh (≈24 hours); RX: 200mAh (≈6 hours).

🎚️ 4 Operating Modes – Left / Right / Stereo / Mute, adaptable to different monitoring needs.

📏 Compact & Portable – Transmitter fits in palm; receivers are ultra‑light (15g each).

🔌 USB‑C Charging – Convenient recharge via Type‑C port (5V 1A recommended).

📶 30m Effective Range – Outdoor line‑of‑sight transmission distance.

🎸 Wide Applications – Stage, studio, band practice, conferences, lectures.

🔧 Technical Specifications

📦 Package Contents

1 x WP-12 Wireless Transmitter

4 x WP-12 Wireless Receivers

1 x USB‑C Charging Cable

4 x Audio Cables

1 x User Manual

⚠️ Important Notes

🔋 Battery care – Charge fully before first use. Battery life varies with volume and usage conditions.

📡 Wireless range – 30m is optimal in open space; walls and electronic interference may reduce range.

🎧 Earphones not included – Use standard wired IEM earphones (3.5mm or compatible).

🔌 Charging – Use 5V 1A USB adapter (not included). Avoid fast chargers exceeding 5V.

🎚️ Mode setting – Refer to user manual to switch between Left/Right/Stereo/Mute modes.

📏 Measurement – Slight size/weight variations may occur. Colors may differ slightly on monitors.
