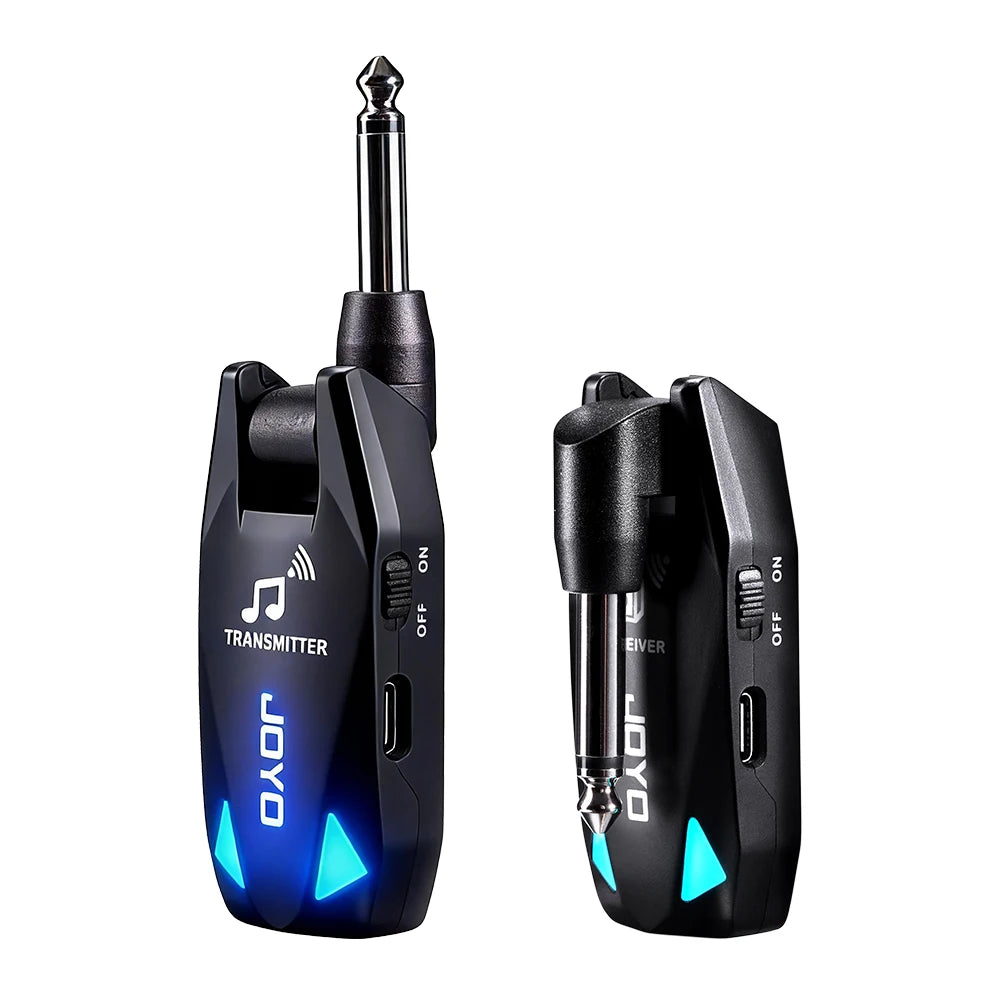

JOYO JW-08 Wireless Audio Transmitter Receiver UHF Anti-interference Band 2MS Low Latency 6 Channel Bank Wireless Guitar System
SPECIFICATIONS
Audio output effects: Amp
Brand Name: JOYO
Choice: yes
Control Type: Mixed
Dimension: 73*34*31mm
Gross Weight: 200g
Hardware interface: Phones
High-concerned chemical: none
Is Batteries Included: Yes
Model Number: JW-08
Net Weight: 70g
Origin: Mainland China
Plug Type: EU Plug
Type: Guitar Transmitter Receiver
semi_Choice: yes
Instructions for Use:
1. How to pair up?
If JW-08 doesn't work properly, pease check up whether the transmitter and the receiver are connected successfully or not, take a look at the indicator, if they are flickering continuously and their color are not the same, you need to pair up again.
The procedures are as below:
When both the transmitter and receiver are powered on, first long press the button on the receiver until its status indicator flickers white. Then long press the button on the transmitter until its indicator flickers white as well. After a few seconds, the 2 devices will be paired up successfully, exit pairing mode return to normal operation and connect automatically.
2. How to switch the Channel banks:
If there is hum and noise during use, it means that there is strong signal interference in the current environment you need to double tap the transmitter switch once to switch the Channel banks, so as to avoid interference. JW-08 has 6 Channel banks in all, in red, green, blue, yellow, purple and cyan.
Features:
1.Key Point: Stable anti-interference UHF wireless transmission with professional audio performance
Explanation: Operates on UHF ISM frequency band, equipped with 6 independent channels. It delivers ultra-low latency under 2ms and signal distortion less than 0.05% at 1kHz -10dBFS, with a full 20Hz–20kHz frequency response to restore authentic tone of guitars, basses and digital pianos. It provides steady signal for home practice, band rehearsals and small venue performances, yet it is not suitable for large-scale stage shows.
2.Key Point: Adjustable long-distance wireless signal coverage
Explanation: The maximum effective transmission distance reaches 150 feet in barrier-free open spaces. If walls, furniture or other obstructions exist, the stable usable range drops to 50–100 feet. Adjusting channels helps reduce signal loss and noise caused by environmental interference during daily practice.
3.Key Point: Built-in rechargeable lithium battery for long continuous runtime
Explanation: Fitted with a built-in 3.7V/500mAh rechargeable lithium battery, the system supports over 6 hours of working time after a full charge. A dedicated battery level indicator lets users clearly check remaining power at any time for outdoor practice and performances.
4.Key Point: 220° rotatable plug for universal instrument compatibility
Explanation: The rotatable 1/4-inch audio plug can twist 220 degrees to adapt to recessed jacks and crowded pedalboards. It is widely compatible with electric guitars, basses, acoustic-electric guitars, digital pianos and other electronic mono musical instruments without plugging conflicts.
5.Key Point: One-click auto pairing & multi-device simultaneous usage without crosstalk
Explanation: Fast automatic pairing design supports up to 6 sets of the wireless system working at the same time with zero signal crosstalk. A single transmitter can switch channels freely to connect multiple receivers, realizing flexible one-to-many audio output for various creation and performance demands.
Specifications:
Low latency: <2mS
Transmission distance: 30-50m
Frequency response: 20-20kHz
Distortion:<0.05%(@1kHz-10dBFS)
Wireless frequency band: UHF ISM frequency band
Channel bank's quantity: 6
Battery: Built-in rechargeable lithium battery 3.7V/500mAh, over 6hrs battery life once fully charged.
Package included：
1* JOYO JW-08 Wireless Audio Transmitter Receiver
1* USB Charging Cable
1* User Manual
Note:
- If JW-08 doesn't work properly, please check up whether the transmitter and the receiver are connected successfully or not, take alook at the indicator, if they are flickering continuously and their color are not the same, you need to pair up again.
- If there is hum and noise during use, it means that there is strong signal interference in the current environment, you need to double tap the transmitter switch once to switch the Channel banks, so as to avoid interference. JW-08 has 6 Channel banks in all, in red, green, blue, yellow, purple and cyan.
