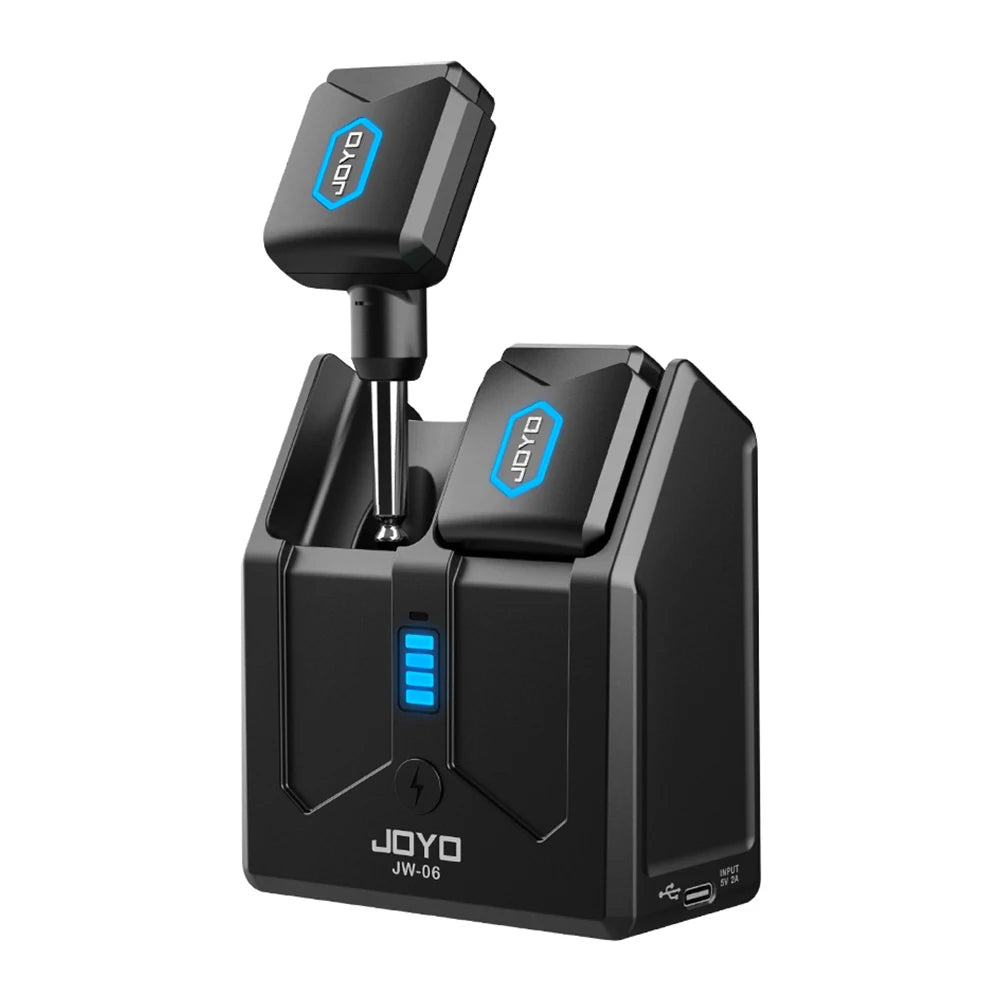

JOYO JW-06 Wireless Guitar System 5.8GHz Rechargeable Digital Wireless Guitar Transmitter Receiver with Portable Charging Case

How to use?

1. Check up the battery level of the charging case/ start charging
2. Charge the charging case
3. Charge other portable devices via the charging case
4. Charge the transmitter and receiver
5. Pair up all over again---double click the buttons
6. Switch the Channel banks
7. Instructions for the wireless system

Description:

JOYO JW-06 is a digital wireless transmitter & receiver for instruments. Its delay time <6ms, transmission distance >20m, with high anti-interference. If you use the transmitter & receiver together with the charging case, its battery life is over 15hrs.

Features:

1. 48K/24bit audio resolution
2. Delay time: <6mS
3. Transmission distance> 20m
4. Frequency response:10Hz 22KHz+-1dB
5. Distortion:<0.029%(@1KHz-10dBFS)
6. Wireless frequency band: 5.8GHz ISM frequency band.
7. Anti-interference method: Frequency hopping
8. Channel bank's quantity: 4
9. Builtin lithium battery: Over 5 hrs battery life once fully charged

Specifications:

Battery: Rechargeable lithium battery 3.7V/500mAh
Frequency response: 10Hz-22KHz
Wireless frequency band: 5.8GHz ISM frequency band
Dimensions: 84* 100* 46mm

Purcahse Note:

1. This product works normally only when the transmitter and the receiver pairs up.It supports one-to-one and one-to-many.
2. Please make sure the transmitter and the receiver keep a distance away from wireless router or other wireless equipments during use.
3. A maximum of 4 sets of transmitters and receivers can be used in the same place simultaneously.
4. If the red indicator flickers during use, it indicates low battery, please charge it in time.

Package List:

1* JOYO JW-06 Wireless Guitar Transmitter Receiver
1* USB Cable
1* User Manual
