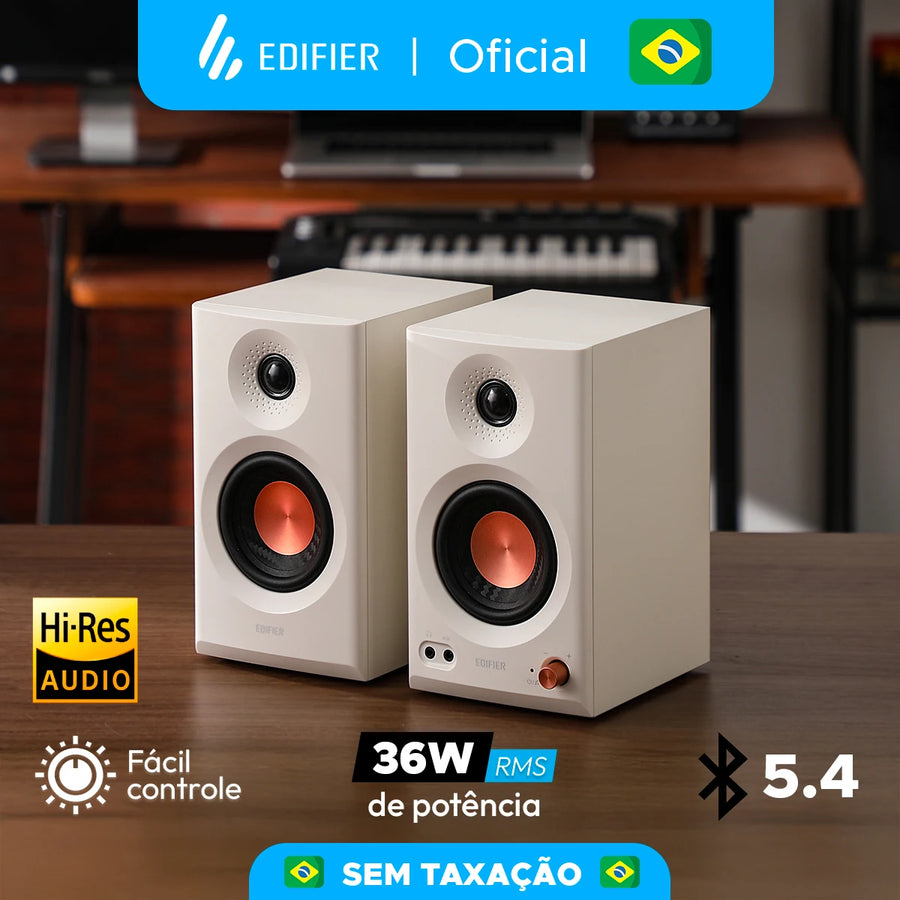

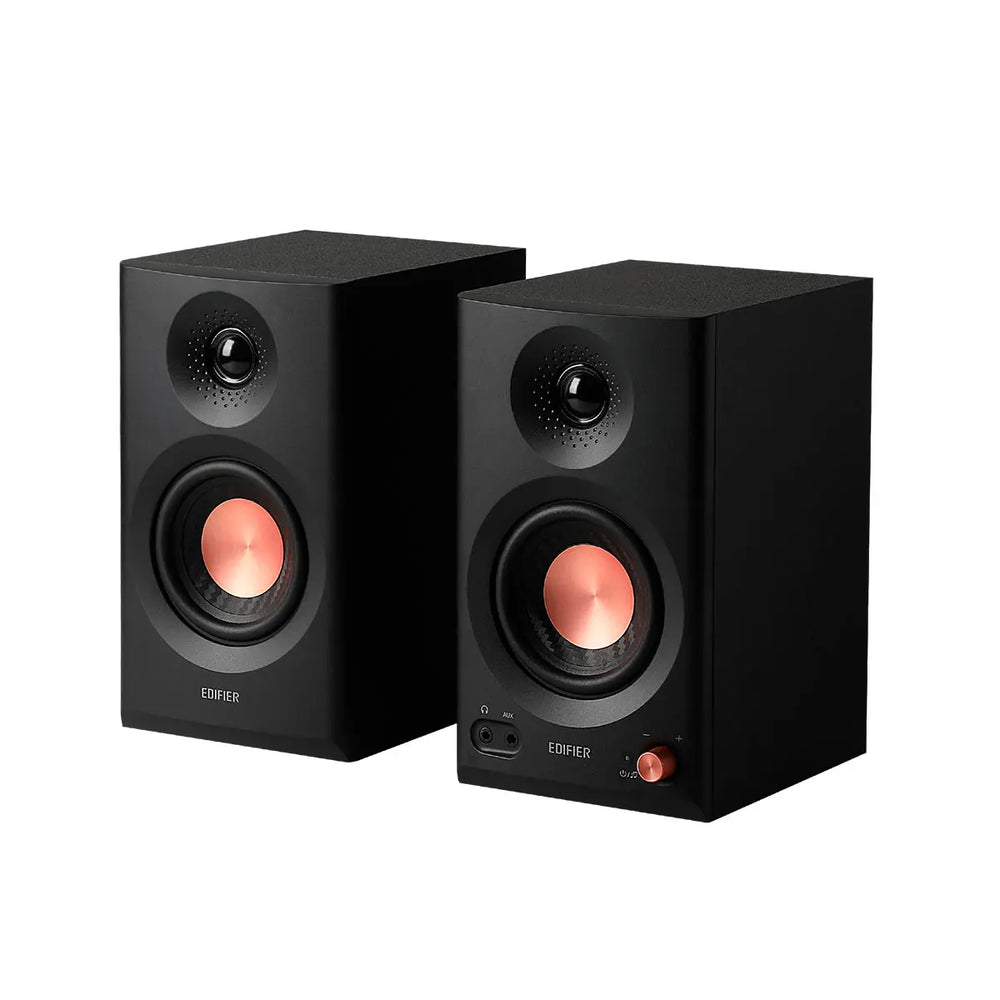

The MR3 Edifier Studio Sound Box-Precision and Professional Quality

Discover theThe sound box for studio MR3 Edifier, Designed to offer faithful and neutral sound reproduction. With 36W RMS power, flat frequency response, and high-resolution audio, it's perfect for home studios, high-quality video editing, and listening.

🎯Key Highlights

Faithful and Detailed Playback of Sound

Well-designed acoustic architecture, dedicated tuning and meticulous design ensure accuracy to the smallest detail.

Response of Flat Frequency

Response from52Hz to 40kHz, Delivering neutral, transparent sound and ideal for reliable mixes and mastering.

Tweeter I need

Design with small cavities around the tweeter, providing flatter and extended high-frequency response, resulting in clean, consistent sound.

High-Resolution Audio

Class D amplifier from Texas Instruments with support24 Bit/96 KHzFor impeccable conversion and amplification.

Custom Acoustic Compensation

Adjustments by back panel or viaEDIFIER ConneX AppTo adapt the sound to the environment and positioning of the boxes.

Control of Frequencies

• Low cutoff:Mitigate bass according to environment.

• Space Acoustic:Compensates reinforcement of medium and bass.

• Desktop Control:Reduces sound reflexes from the table.

Power and Clarity

3.5 "mid-woofer drivers and 1" tweeters deliver 36W RMS and up to 92.5 dB SPL, ideal for close-up listening or filling medium-sized rooms.

Full Connectivity

• Balanced TRS:Low noise and professional connection.

• RCA and AUX:Compatible with various devices.

• Output for headphones:Front panel for easy access.

Bluetooth V5.4 Advanced

Stable streaming and simultaneous connection with up to two devices without the need for repairing.

📱EDIFIER ConneX App

Full control via smartphone: Equalization adjustment, change of modes, acoustic compensation and other features (for Bluetooth input).

⚙️ Technical Specifications

• Power of output:36W (18W + 18W)

• Bluetooth:V5.4, SBC codec

• Sensitivity of input:TRS: 1228 ± 100mV / RCA: 775 ± 50mV / AUX: 775 ± 50mV / Bluetooth: 800 ± 50mFFS

• Response of frequency:52Hz - 20kHz

• Signal/Noise Ratio:≥ 85dBA

• Tweeter unit:1"

• Mid-Woofer Unit:3.5"

• Entries:TRS ¼ ”balanced, RCA, AUX 3.5mm, Bluetooth

• Output for headphones:3.5mm

• Voltage:Bivolt AC 100-240V/50-60Hz

📏Dimensions and Weight

• Active Box:220 (H) x 130 (W) x 180 (D) mm-2.05 kg

• Passive Box:220 (H) x 130 (W) x 180 (D) mm-1.90 kg

• Packing:175 (H) x 415 (W) x 310 (D) mm-5.10 kg

📦Included Items

• 1 Pair of MR3 boxes

• 1 Power cable-180cm

• 1 Cable RCA-P2 - 170cm

• 1 Cable P2-P2 - 170cm

• 1 Link Cable (Passive/Active) - 250cm
